Sysmac Studio Software from Omron
October 14, 2025

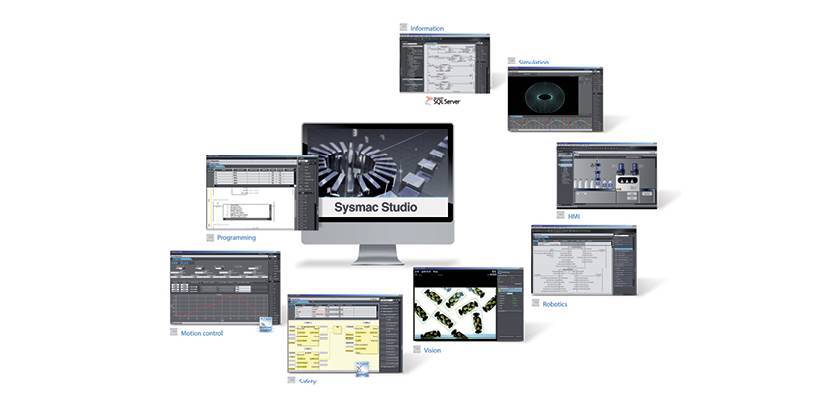

A truly integrated development environment for machine automation, combining configuration, programming, simulation, and monitoring in a simple interface
Future automation systems will be more intelligent and interconnected, consequently engineering and maintenance costs will increase unless modern and appropriate software tools are used during the design, commissioning and maintenance stages. Sysmac Studio is a unique environment that integrates logic, motion and drives, robotics, safety, visualization, sensing and information technologies in a single project, thus reducing the learning curve and the intra-operative software costs. Team development, and integrated simulation are the key elements that make Sysmac Studio not only a development studio but a real productivity tool.
One software to get things done.

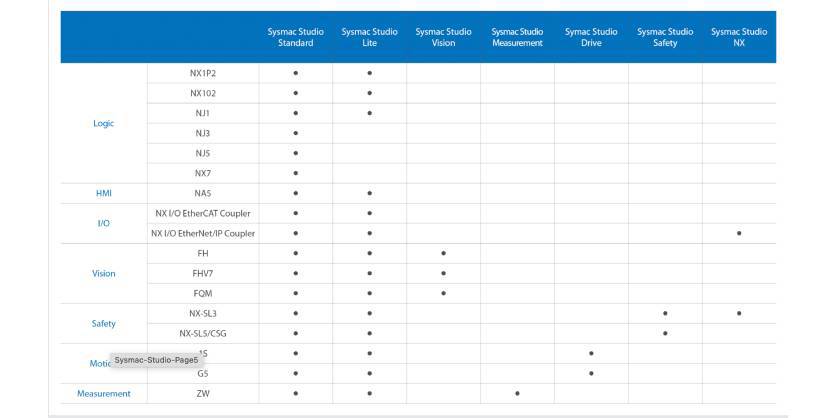

Omron Portfolio Integration
- NX-series controllers
- NJ-series controllers
- NA-series HMI
- NX-series I/O and safety
- G5-series servo
- MX2-series and RX-series frequency inverter
- FH and FQM vision system and sensor
- GX network components
- E3 N-Smart sensors
- ZW-series measurement sensors
One software to control and configure the entire machine with a single connection gives you the power and efficiency to develop and create like never before. Other utilities for peripherals and expanded information network configuration are also included in the software suite.

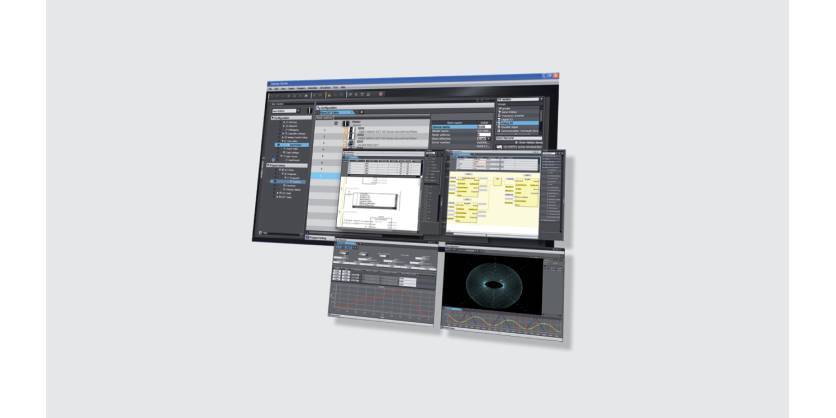

Design
Robust and sustainable machine programs begin with industry proven design principles. Engineered for complete machine control, Sysmac Studio allows program designing in a highly functional and intuitive environment to increase the time to market.
- Integrating logic control, safety, motion, drives, robotics, HMI, Vision, Advances Sensing and information systems into a single environment allows programs to leverage simplified program architecture for quicker development.
- IEC611-31-3 compliance and third-party compatibility further accelerates program time while allowing minimum impact to existing automation infrastructure.
- Sysmac Studio function blocks can be locked and customized to decrease risk of stolen intellectual property and easy version control.
- No matter the version of Sysmac Studio, the software is compatible with all firmware versions of products in the Sysmac portfolio. Extending product life in the field.
- Create flexible and modular designs using Sysmac Studio library system, Intelligent Application Gadgets (HMI faceplates), and flexible EtherCAT configurations.
Commissioning
Installation costs during start-ups can quickly derail production. Simulating programs in parallel to hardware builds, maximizes first pass yields while decreasing project costs.

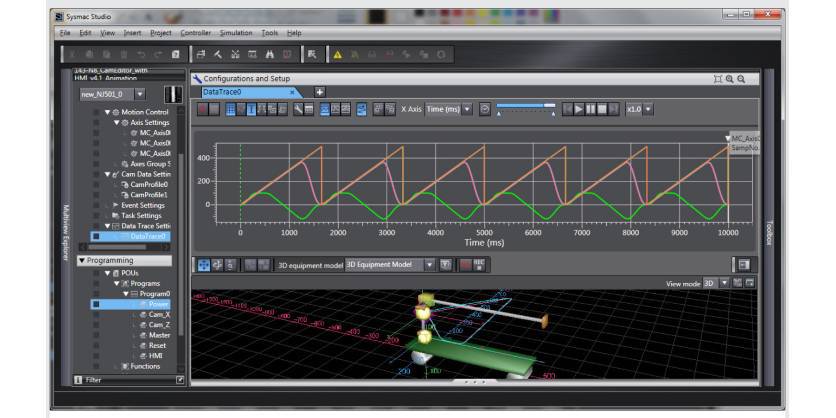

- Import and control CAD data to simulate a machine using standard ladder logic, structured text and function block commands. Sysmac Studio can fully simulate Human Machine Interface, Controller and machine operation in one software.
- Simulate the Ladder Logic / Structured Text programs to test the program for the actual machine. PLC Program Simulation does not require any hardware connection.
- The NA HMI screens can be simulated in Sysmac Studio to help with the design of operator screens . The variables used for the PLC program can be linked with the NA HMI buttons or data displays. HMI Program Simulation does not require any hardware connection.
- More than 50 PLCopen and Proprietary Motion function blocks are available to develop single, synchronous and coordinated motion applications. Rich graphic cam editor including multiple interpolation methods as standard. Motion Program Simulation does not require any hardware connection.
Production
Boosting productivity may start with data collection but implementing process improvements is where efficiencies can greatly increase. Sysmac Studio allows facilities to do both.
- The Sysmac Automation Playback is the convergence of data, video, program structure, and ladder logic. All playback is time synced and event triggered to allow local and remote team members to quickly and accurately diagnose issues without interrupting production.
- In the era of The Internet of Things, information and automation systems converge. Sysmac Studio allows you to handle OEE data by means of vertical and horizontal integration following open standards like OPC-UA, EtherNet/IP, EtherCAT or PackML Direct.
- Future updates are part of the Sysmac ethos. Automatic software updates continuously improve software security and license management can be completely monitored for the whole team through the License Manager.
Licensing
Omron offers a simple process to start using Sysmac Studio. In most cases, one license can cover all your application needs, with only a one-time fee and no maintenance contracts.
- License packages available in single seat, multiple seats, and team licenses
- Initial 30 Day trial license is available for immediate use
- Student 6 month trial license is available to support growing programmers
