Omron CK3M Programmable Multi-Axis Motion Controller

DCS Omron CK3M Programmable Multi Axis Motion Controller 400x275

October 4, 2022



Omron’s next-generation motion controller packs PMAC’s superior motion control capability, multi-vendor connectivity and flexible development capability into its compact design.

Maximize your machine’s performance: Performing precise linear motor drive control and nanoscale positioning, the PMAC (Programmable Multi Axis Controller) has been appreciated by manufacturers of semiconductor manufacturing equipment and other leading-edge equipment.

Omron now offers a next generation motion controller CK3M that packs PMAC’s superior motion control capability, multi-vendor connectivity, and flexible development capability into its compact design. The CK3M removes constraints and barriers and maximizes your machine’s capabilities.

Overview

Local axes for nanoscale precision

  • •Ultra-high-speed synchronous control (50µs/5 axes)
  • •Custom servo regulation algorithms
  • •Flexibility on using multi-vendor actuators and encoders
  • •Flexibility on programming on G-code, ANSI C or original programming language
  • •EtherCAT for flexible configuration
  • •Modular design and DIN rail mounting



Modular design

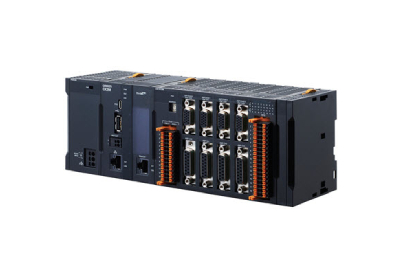

The modular design allows you to freely combine the CK3M with up to two axial interface units to enable a variety of applications.

Power PMAC IDE (Integrated Development Environment)

  • •Based on Microsoft® Visual Studio®
  • •ANSI C or original programming language
  • •Easy tuning
  • •Simple setting
  • •Troubleshooting
  • •Debugger



Complex kinematics

Complex mechanics can be controlled thanks to the matrix handling and the space conversion. Special applications like Hexapod telescope mirror positioning, can be easily operated by the kinematics handling functionality.

To learn more about Omron’s next-generation motion controller, click here
