Meet the NEMA 3R Vented Drive Box

Engineered to protect and optimize your systems in the most demanding environments

October 15, 2024

Meet the NEMA 3R Vented Drive Box

NEMA 3R Vented Drive Box

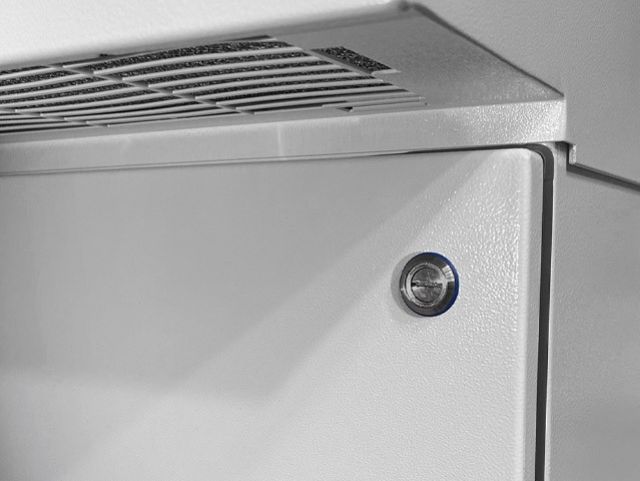

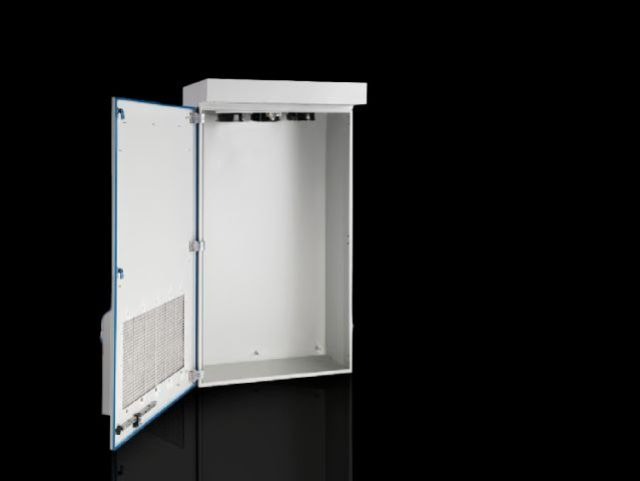

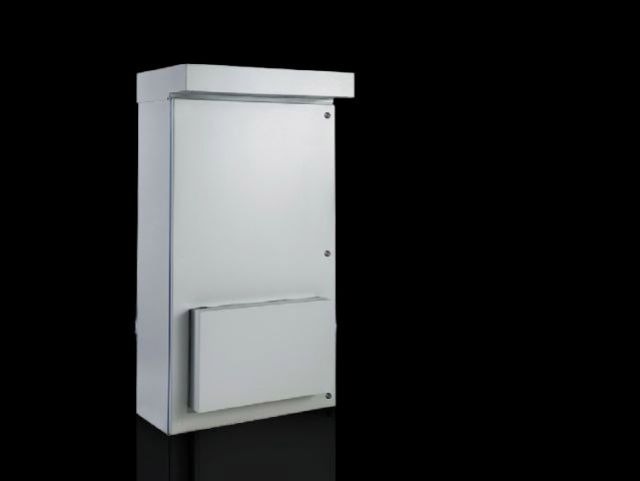

The WMV NEMA 3R vented enclosure is a single door enclosure with roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.

    Meet the NEMA 3R Vented Drive Box
    Meet the NEMA 3R Vented Drive Box
    Meet the NEMA 3R Vented Drive Box
Order no. Height Width Depth Fan size No. of locks Model no.
9980094709 mm
( 27.9 ˝ )		609 mm
( 24 ˝ )		304 mm
( 12 ˝ )		4 in2WMV282412NC
9980095869 mm
( 34.2 ˝ )		609 mm
( 24 ˝ )		304 mm
( 12 ˝ )		4 in2WMV342412NC
99800961,009 mm
( 39.7 ˝ )		609 mm
( 24 ˝ )		304 mm
( 12 ˝ )		4 in2WMV402412NC
99800971,184 mm
( 46.6 ˝ )		609 mm
( 24 ˝ )		354 mm
( 13.9 ˝ )		6 in3WMV462414NC
99800981,334 mm
( 52.5 ˝ )		909 mm
( 35.8 ˝ )		404 mm
( 15.9 ˝ )		6 in3WMV543616NC
99800991,634 mm
( 64.3 ˝ )		909 mm
( 35.8 ˝ )		404 mm
( 15.9 ˝ )		6 in3WMV663616NC

Source

Related Story

The Complete Guide to NEMA 3R Enclosures

When it comes to protecting electrical components from harsh environments, NEMA 3R enclosures are a game-changer. These rugged electrical enclosures are designed to shield equipment from rain, sleet, and external ice formation, ensuring reliable performance even in challenging conditions.

NEMA 3R is a rating by the National Electrical Manufacturers Association (NEMA) that defines an enclosure’s ability to protect internal components. These enclosures provide protection against rain, sleet, and external ice formation. They are suitable for both indoor and outdoor use. Learn more about NEMA 3R Enclosures in this article.
