Introducing the New RB-SWDV from Hammond Manufacturing

April 29, 2025

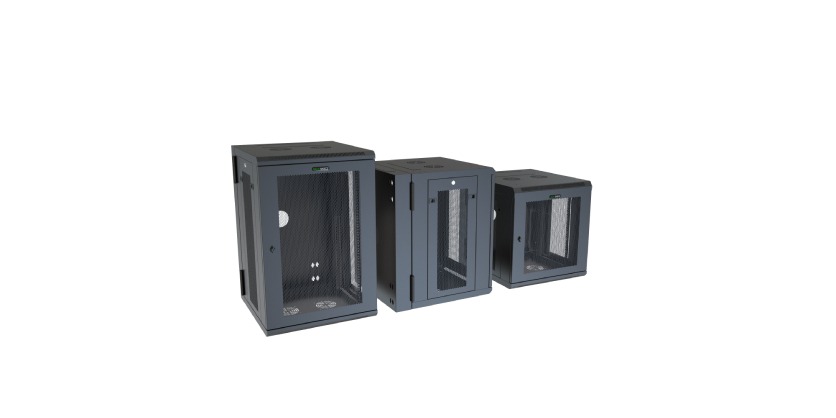

Introducing the New RB-SWDV from Hammond Manufacturing

RB-SWDV – The perfect go-to for quick installs, small spaces, and swing-out accessibility, without the premium price tag.

Hammond Manufacturing is pleased to introduce their new RB-SWDV swing-out wall mount cabinet. It is the perfect go-to for quick installs, small spaces, and swing-out accessibility without the premium price tag. And it is part of Hammond’s Rack Basics line – designed to hit that sweet spot between value and versatility.

RB-SWDV features:

  • Double-hinged for easy rear access.
  • Constructed in light-duty 16-gauge steel.
  • Includes two (2) pairs of EIA compliant square hole punched rails with 19” mounting.
    • Starter pack of (25) M6 screws and cage nuts included.
    • For 10-32 hardware, see our CAGKIT Series.
  • Rails are adjustable.
  • Includes one (1) locking vented door.
  • Includes one (1) pair of vented locking removable side panels.
  • Top, bottom and rear cable access.
  • Includes fan vents for optional fans as well as holes for optional casters on the top and bottom.
  • The entire cabinet can be flipped 180 degrees to accommodate hinging right-to-left.
  • Ships assembled – ready to install.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
  • 198 lbs (90 kg) of equipment load capacity.
  • Finished in black powder paint.
  • RoHS Compliant.
